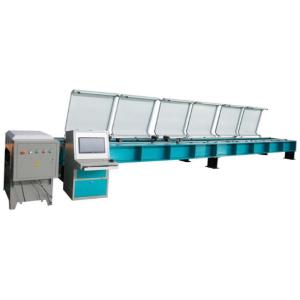

Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods

Name: Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods
Brand: TID POWER
Price: 1 USD

Cheap Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods for sale

Brand Name : TID POWER

Model Number : JSL500

Certification : ISO9001/CCPIT

Place of Origin : SHAAN XI, CHINA

MOQ : 1 Piece/Pieces

Price : Negotiate

Payment Terms : L/C T/T

Packaging Details : Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film

Applicable Industries : Tensile Testing Machine

Port : Shanghai or other port in China

Origin : Shaan xi, China

Automatic : Yes

Certificate : ISO 9001

Warranty : One year

Contact Now

Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rod

1. The features of Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods

The tensile testing machine is mainly used for testing the tensile strength, breaking strength and other mechanical properties of fiberglass rods and fiberglass tubes.including
1. One by one test;
2. 1-minute withstand test;
3. Breaking test;
4. Step by step tensile load test (gradually increase the tensile load for 1 minute endurance test until it breaks)
Design test;Type test;
There is a function of adjustable rate in same cycle test of mechanical test

2. Technical Parameters of Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods

Model			JSL500
Max Tensile Load (kN)			500
Dimension	LxWxH (mm)		12600 X 1100 X 850
	Effective width of equipment (mm)		500±0.5
	Effective stretching length of equipment (mm)		10000
	Load jack spacing(mm)		600
Hydraulic system	Oil pump flow L/min	Low pressure pump	25
		High pressure pump	2.5
	Oil pump maximum working pressure (Mpa )		20
	Piston rod idle travel speed mm/S	fast forward	19
		Rewind	24
	Piston rod idle stroke mm		620
	Motor function(kW)	low pressure pump	3
		High-pressure pump	1.5
Tank	Dimension: L×W×H (mm)		690x 940x 690
	Capacity (L)		180

Tensile Testing Machine Insulator Testing Machine For Glass Fiber Rods

FAQ:

1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
